Simple Operation Shock Drop Testing Machine Drop Tester with Drop Height 200 cm
Drop Tester Specifications
| Model | DT150 | DT200 |
| Drop height range (mm) | 300---1500 | 300----2000 |
| Specimen max.weight (kg) | 85 | 85 |
| Specimen max. size (mm) | 800*800*800 | 800*800*800 |
| Drop mode | Freedom |
| Machine Dimension (mm) | 1500*1000*2150 | 1700*1200*2750 |
| Machine weight (kg) | 480 | 550 |
| Power supply | AC220V 50Hz compressed air 0.5~0.7Mpa |
| Standards | ISO2248-72(E) GB/T4857.5 JISZ0202-87 IEC68-2-27
|
Product description
High Accuracy Drop Tester for Packaged Freight Description & Application
Packaging drop tester is used to measure the dropping impact incidence when the package in using, transportation and decorating.
Labtone "1G+" project strictly ensure the accuracy. Besides precision plane drop testing, it also can undertake edge and angle test to ensure the complete performance evaluation for the package.
High Accuracy Drop Tester for Packaged Freight Features
1 Unique swing arm mechanism design, swing arm break away from acceleration more than 3 G/SEC.

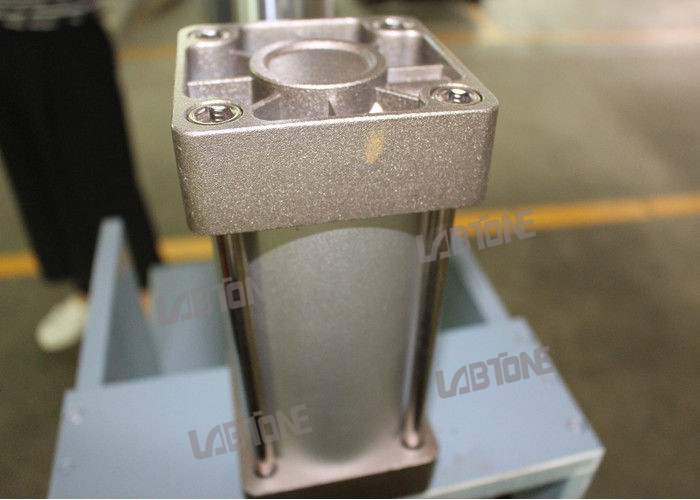

2 With double column guide and hydraulic buffer absorb residual swing arm force, movements smooth, reliable, low noise.

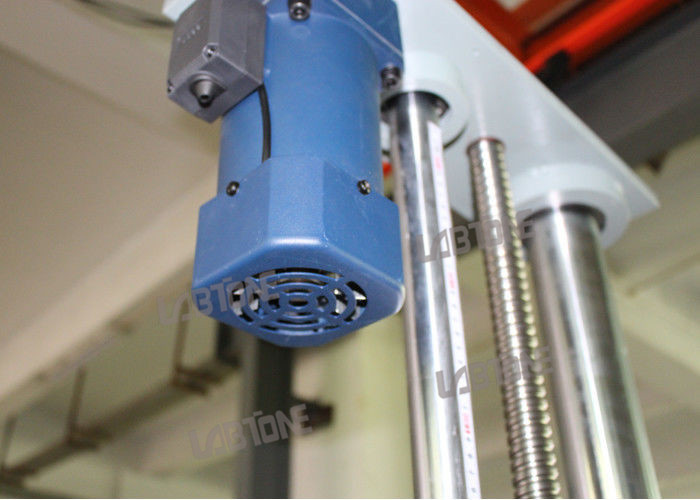

3 Damping screw lifting mechanism, preventing drop institution unexpectedly glide.
4 Pneumatic automatic chain, preventing swing arm unusual break away.
5 Extensible support bracket and baseboard.
Packaging
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case,which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless,moisture corrosion, good transparency etc
