Simulate Transportation Shaker Table For Package Transportation Vibration Simulation

Name: Simulate Transportation Shaker Table For Package Transportation Vibration Simulation
Brand: LABTONE
Price: 1 USD

China Simulate Transportation Shaker Table For Package Transportation Vibration Simulation wholesale

Brand Name : LABTONE

Model Number : YST100

Certification : CE, ISO

Place of Origin : CHINA

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 15 Sets / Month

Delivery Time : 30-35 Working Days

Packaging Details : International Standard Wooden Case

Product Name : Simulate Transportation Shaker Table

Table Size : 1000 x 1200

Frequency : 2~5Hz(120~300)RPM

Amplitude : 1 inch (25.4mm) fixed

Test Motions : Rotary(Synchronous)

Power Supply : AC 220V±10% 50Hz

Payload : 100 kg

Contact Now

Simulate Transportation Shaker Table For Package Transportation Vibration Simulation

ista-1a.pdf.pdf

Description and Application
Mainly used in repeating impact, unloading or jump test that comply to ISTA , ASTM, TAPPI, ISO MIL-STD, FED-STD, UN, DOT and other industrial and government standards. Frequency range is 2-5Hz with fixed displacement of 1 inch (25.4 mm)and maximum acceleration of 1.25 G.

YST series vibration shakers apply eccentric cam principle to achieve rotation (marquee)l and non-synchronized (30°unbalance vibration) vibration modes

Features

Precise digital display for the vibration frequency.
Synchronous low noise wide belt drive mechanism.
Guide Rail type fixture for specimen, easy to operate.
Heavy channel iron base equipped with damper rubber makes the machine easy to install, having large loading capacity, ensuring stable running.
Rotational Vibration method complies with international test standard.
Suitable for toys, electronics, furniture, gifts, porcelain, packaging industries for packaging transportation simulation test.

Specifications

Model	YST100	YST200	YST500	YST1000	YST2000
Max Payload(kg)	100	200	500	1000	2000
Table Size(mm)	1000x1200	1200x1200	1200x1500	1500x1500	1500x1500
Frequency Range	2~5Hz(120~300)RPM
Displacement	25.4mm Fixed
Test Motions	Rotary (Synchronous)
Power Supply	AC220V±10% 50Hz		3-phase 380V±10% 50Hz

Product Details
Simulate Transportation Shaker Table For Package Transportation Vibration Simulation

Product Tags:

Simulate Transportation Shaker Table

Shaker Table For Package

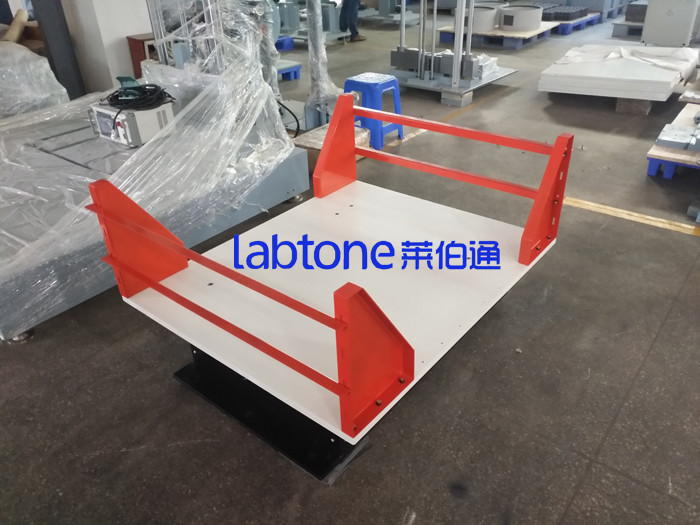

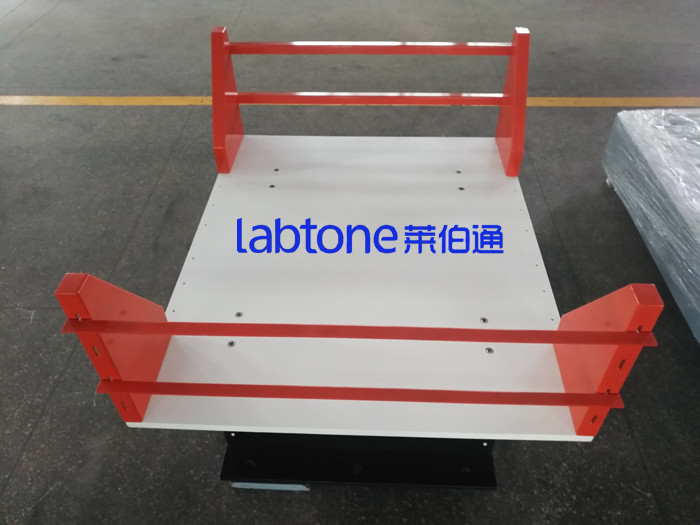

Simulate Transportation Shaker Table For Package Transportation Vibration Simulation Images
