1200*1200 mm Table Transportation Vibration Tester For Packaging Industry

Labtone Test Equipment Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

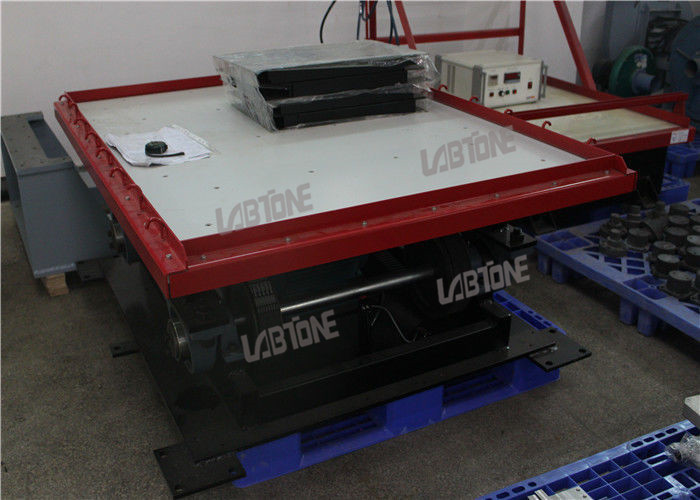

1200*1200 mm Table Transportation Vibration Tester For Packaging Industry

  • 1
  • 2
  • 3

Brand Name : LABTONE

Model Number : YST200

Certification : CE, ISO

Place of Origin : CHINA

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 15 Sets / Month

Delivery Time : 30-35 Work Days

Packaging Details : International Plywood Case

Payload : 200kg

Table Size : 1200 x 1200

Frequency : 2~5Hz(120~300)RPM

Amplitude : 1 inch (25.4MM) fixed

Vibration Pattern : Rotation, 30° unbalance vibration(asynchronous)

Power Supply : AC 220V±10% 50Hz

Contact Now

1200*1200 mm Table Transportation Vibration Tester For Packaging Industry​

General Introduction

Transportation Simulator is used in laboratory to simulate the truck transportation situation on different road conditions. The purpose is to inspect and estimate the performance of packaging in such conditions.


Features

  • Precise digital display for the vibration frequency.
  • Synchronous low noise wide belt drive mechanism.
  • Guide Rail type fixture for specimen, easy to operate.
  • Heavy channel iron base equipped with damper rubber makes the machine easy to install, having large loading capacity, ensuring stable running.
  • Rotational Vibration method complies with international test standard.
  • Suitable for toys, electronics, furniture, gifts, porcelain, packaging industries for packaging transportation simulation test.

Operating mode


1200*1200 mm Table Transportation Vibration Tester For Packaging Industry


Main Parameters:

Maximum Pay Load

200 kg

Frequency Range

120~300 rpm (2-5 Hz)

Displacement (mm)

25.4 mm(1 inch)

Motion

Rotation

Vibration Table Size (mm)

L1200 × W1200

Power Supply

AC 1Ø 220V, 50Hz, 10A

Power Consumption (KVA)

1.5

Weight(kg)

200 Kg

Environment conditions

5~40℃;≤85%RH

Test Standard complied

ISTA/EN71

Customer Services:

Presales

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.

In-Sales

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).

After-Sales

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.

Company Introduction:

Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.

Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.

Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to solve your problems.

We sincerely invite you to visit our factory.

Controller:

1200*1200 mm Table Transportation Vibration Tester For Packaging Industry

1200*1200 mm Table Transportation Vibration Tester For Packaging Industry
