100kg Payload Mechanical Shock Test Machine For Battery Half Sine Testing
Mechanical Shock Test Machine Description
Shock Testing Profiles: half-sine, saw tooth, triangular, rectangular, trapezoidal
The shock testing system of SKT series are mainly applicable to shock resistance tests in such fields as electronic products, aerospace, shipping, military industry, automotive parts and transportation. Shock tests in form of half sine wave, final peak saw tooth wave or trapezoidal wave shock tests can be carried out by selecting different waveform generators.
The equipment conforms to such testing specifications as GB/T2423-2008, GJB150, GJB360, GJB548, GJB1217, UN38.3, MIL-STD-202F, IEC-68-2-27, MIL-STD-810F, MIL-STD-883E, etc.
Mechanical Shock Test Machine Main Features
1) User-friendly touching screen operation.Half sine, square waveform shock pulse programmers.High rigidity shock tables.
2) Half sine, square waveform shock pulse programmers.
3) High rigidity shock tables.
4) A full range of safety features.
5) Apply air and hydraulic pressurization, strong friction brake avoiding secondary shock .
6) Apply air spring suspension, hydraulic damping shockproof system, no shock impact on the surrounding, without foundation
Mechanical Shock Test Machine Specification:
| Model | SKT30 | SKT50 | SKT100 | SKT200 | SKT300 | SKT600 | SKT1000 | |
| Table Size (cm) | 40 x 40 | 50 x 60 | 70 x 80 | 100 x 100 | 120 x 120 | 150 x 150 | 200 x 200 | |
| Max. Specimen Weight(kg) | 30 | 50 | 100 | 200 | 300 | 600 | 1000 | |
| Max. Acceleration (G) | Half Sine | 600 | 600 | 600 | 500 | 500 | 300 | 300 | |
| Saw-tooth | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |
| Square | | 150 | 150 | 150 | 100 | 100 | 100 | |
| Pulse duration (ms) | Half Sine | 30—0.5 | 30～1 | 30～1 | 30～2 | 20～3 | 20～3 | 20～3 | |
| Saw-tooth | 18～6 | 18～6 | 18～6 | 18～6 | 18～6 | 16～6 | 18～6 | |
| Square | | 30～6 | 30～6 | 30～6 | 30～6 | 30～6 | 30～6 | |
| Controller cabinet dimension(cm) | W55*D50*H80 |
| Machine weight(Kg) | 1900 | 2300 | 3200 | 4200 | 8500 | 15500 | 21500 | |
| Power supply | 3(phase) AC380V 50/60Hz Compressed air 0.5～0.8MPa |
| Standards | GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL |
| Model | HSKT10 | HSKT10D | HSKT15 | HSKT30 | HSKT35 |
| Table Size(mm) | 200 x 250 | 300 x 300 | 250 x 250 | 250 x 250 | 250 x 250 |
| Max. Payload (kg) | 10 | 25 | 10 | 10 | 10 |
| Shock Pulse | Half Sine Wave |
| Acceleration Range(G) | 20~2000 (bare table) | 20~10000
(bare table) | 20~15000
(bare table) | 20~30000
(bare table) | 20~35000
(bare table) |
| Pulse Duration(ms) | 0.2~18 | 0.1~11 |
Customer Services
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas

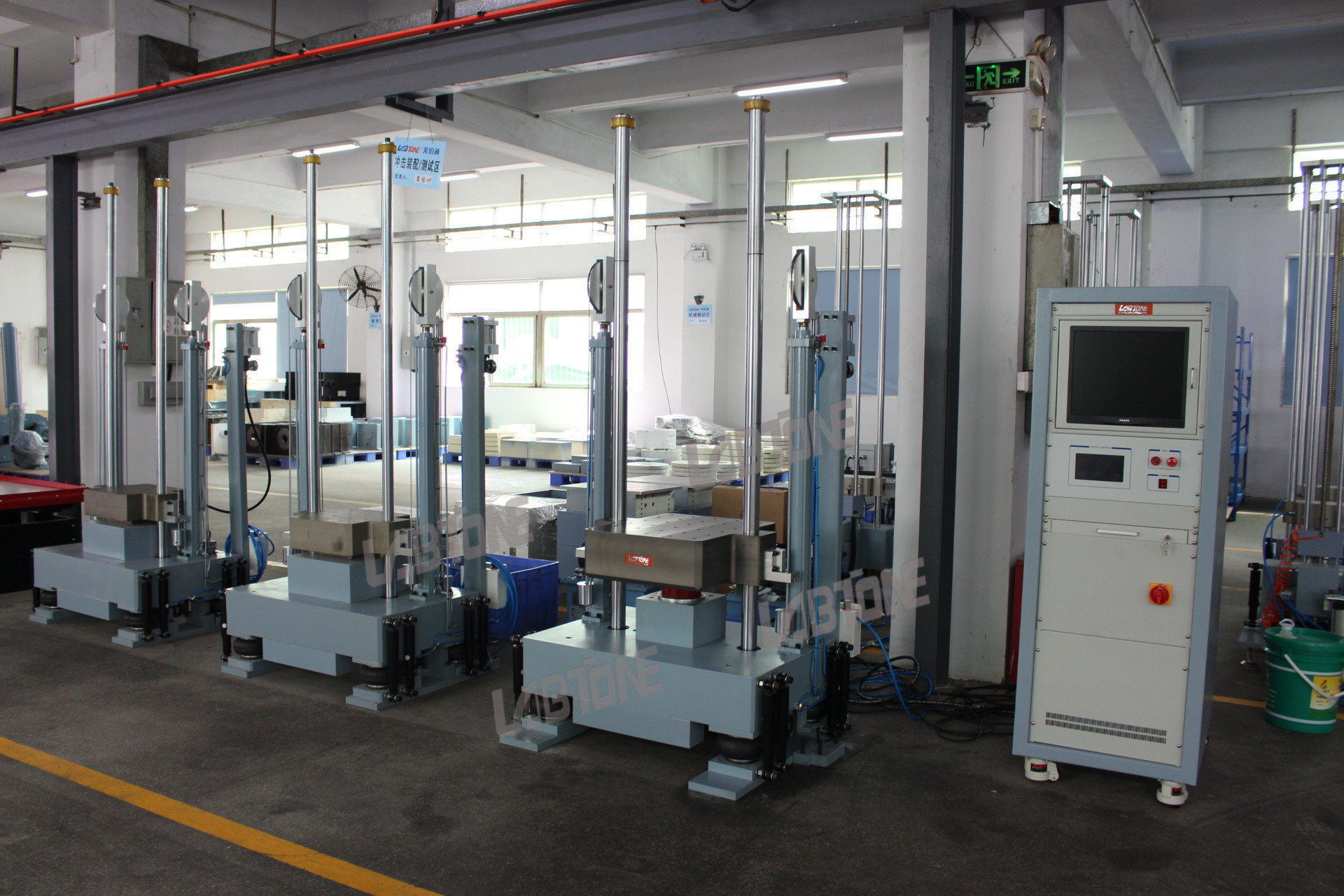

Workshop :
