400KG Electrodynamic Vibration Shaker For Aerospace Products Vibration Testing With Slip Table

Name: 400KG Electrodynamic Vibration Shaker For Aerospace Products Vibration Testing With Slip Table
Brand: LABTONE
Price: 1 USD

China 400KG Electrodynamic Vibration Shaker For Aerospace Products Vibration Testing With Slip Table wholesale

Brand Name : LABTONE

Model Number : EV220

Certification : CE / ISO

Place of Origin : Dongguang, China

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 15 Sets / Month

Delivery Time : 45 Working Days

Packaging Details : Plywood Case with Vacuum Packing

Product Name : Vibration Testing Table

Max. Velocity : 200 cm/s

Maximum Displacement : 50 mmp-p

Frequency Range : 2-2500 Hz

Payload : 400 kg

Power Amplifier : 3-phase AC 380V 50Hz

Rated Force : 20 kN

Contact Now

400KG Electrodynamic Vibration Shaker For Aerospace Products Vibration Testing With Slip Table

Features

Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability
Load center airbag has high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation
High efficiency D class power switching, 3-sigma peak current, provide finest power consumption and minimize harmonic distortion
Quick self-diagnosis with safety interlock, high safety reliability
Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and reduce vibration transmittance
Provide horizontal and vertical expansion platform for different application
Simple controller operation

Specifications

Model	EV203	EV206	EV210	EV220
Vibration Generator	VG300/40	VG300/50	VG1000/50	VG2000/50
Frequency(Hz)	2-2500	2-3000	2-3000	2-2500
Max Exiting Force(kg.f)	300	600	1000	2000
Max. Displacement (mmp-p)	40	50.8	50.8	50.8
Max. Acceleration(g)	100	100	100	100
Max. Velocity(cm/s)	120	200	200	200
Payload(kg)	120	200	300	400
Armature Mass(kg)	3	6	10	20
Armature Diameter(mm)	φ150	φ200	φ240	φ320
Cooling Method	Forced Air Cooling
Vibration Generator Weight(kg)	460	920	1100	1600
Vibration Generator Dimension LWH(MM)	750555670	800600710	845685840	12008701100
Power Amplifier	Amp3k	Amp6k	Amp12k	Amp22k
Cooling Method	Forced Air Cooling
Power Amplifier Weight(kg)	250	320	350	500
Power Amplifier Dimension LWH(MM)	8005501250	8005501250	8005501520	8005501520
Utility Requirements	3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW)	9	20	25	35

Company Profile

Labtone Test Equipment Co.,Ltd. is a +15 year China manufacture of reliable,cost-effective equipments. Our superior products mainly Combined Environment Test Chambers.

Labtone started business in 2002 in a plant located in Shenzhen and moved to our new,expanded 6000 square meter facility in Dongguan,Guangdong in 2015.Today, our products are found around the world in electronics,automative,aerospace,telecommunication,optoelectronics instrument and industrial machinery applications.Our experience and commitment to new product development has resulted in products that are easy to use,accurate and designed for decades of service.

Labtone products carry a 1 year(12months)warranty and are available direct from our factory in Dongguan,China.We provide comprehensive factory service and support,technical literature,manuals and guides as well as having a qualified staff of experts to help solve your application issues.

We sincerely invite you to visit our factory.

Service

Pre-Sales Service

1)Technical consultation: test method, laboratory planning and suggestion.

2)Equipment selection: selection scheme, FAQ.

3)Product testing scheme.

4)Customer communication and progress report.

After-Sales Service

1)Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.

2)Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.

3)Technical support: special paid services are provided according to customer’s needs.

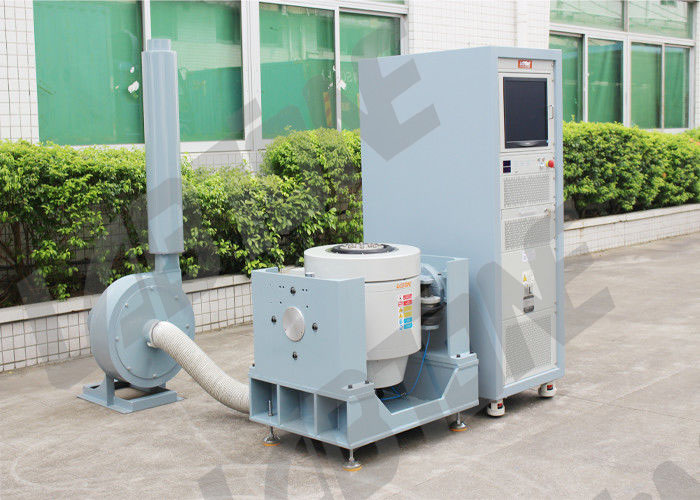

Product Show

400KG Electrodynamic Vibration Shaker For Aerospace Products Vibration Testing With Slip Table

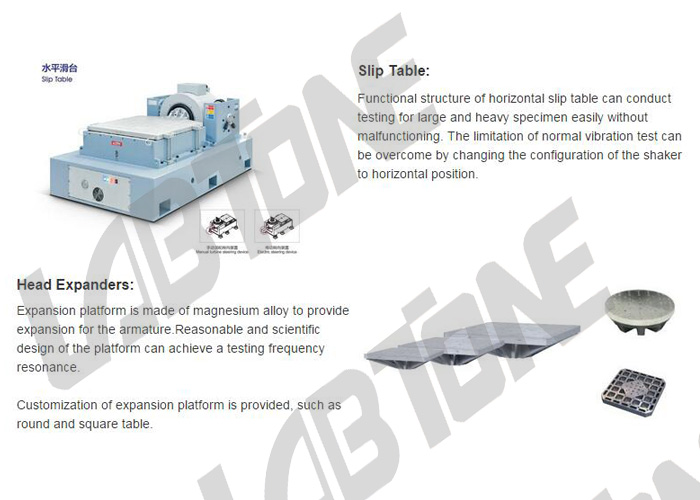

Product Details

400KG Electrodynamic Vibration Shaker For Aerospace Products Vibration Testing With Slip Table

Working Principle

400KG Electrodynamic Vibration Shaker For Aerospace Products Vibration Testing With Slip Table

Packaging
