Rotary Vibration Shaker System For Package Test ISTA , IEC Standard

Name: Rotary Vibration Shaker System For Package Test ISTA IEC Standard
Brand: LABTONE
Price: 1 USD

China Rotary Vibration Shaker System For Package Test ISTA , IEC Standard wholesale

Brand Name : LABTONE

Model Number : YST500

Certification : CE, ISO

Place of Origin : CHINA

MOQ : 1SET

Payment Terms : T/T, L/C

Delivery Time : 30 days

Packaging Details : International Plywood Case

Price : Negotiable

Supply Ability : 15 Sets / Month

Payload : 500 kg

Table Size : 1200 x 1500

Frequency : 2~5Hz(120~300)RPM

Amplitude : 1 inch (25.4MM) fixed

Vibration Pattern : Rotation, 30° unbalance vibration(asynchronous)

Power Supply : AC 380V±10% 50Hz

Contact Now

LABTONE YST500 Electrodynamic Vibration Shaker System For Package Test

Description and Application

Transportation Simulators Mainly used in repeating impact, unloading or jump test that comply to ISTA , ASTM, TAPPI, ISO MIL-STD, FED-STD, UN, DOT and other industrial and government standards. Frequency range is 2-5Hz with fixed displacement of 1 inch (25.4 mm)and maximum acceleration of 1.25 G.

YST series vibration shakers apply eccentric cam principle to achieve rotation (marquee), vertical and non-synchronized (30°unbalance vibration) vibration modes

Features

1, Adjustable frequency.
2, Fixed amplitude.
3, Convenient installation, operation and maintenance.
4, Unilateral high fence for the back side.

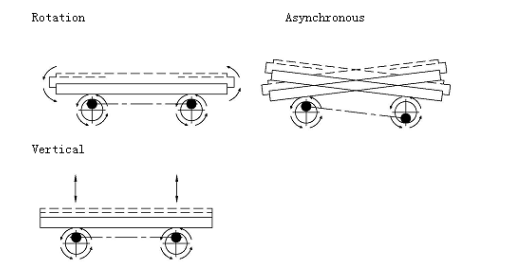

Operating mode

Specifications

Model	YST100	YST200	YST500
Payload(kg)	100	200	500
Table size(mm)	1000*1200	1200*1200	1200*1500
Frequency	2~5Hz(120~300)RPM
Amplitude	1 inch (25.4mm) fixed
Vibration pattern	Rotation , 30 ° unbalance vibration(asynchronous)
Power supply	AC220V±10% 50Hz

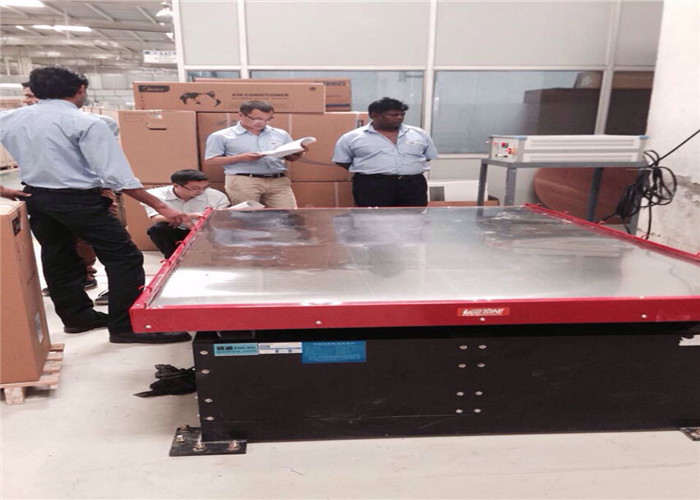

India Customer
